Schneider 244LD buoyancy level transmitter from China
Schneider 244LD buoyancy level transmitter from China

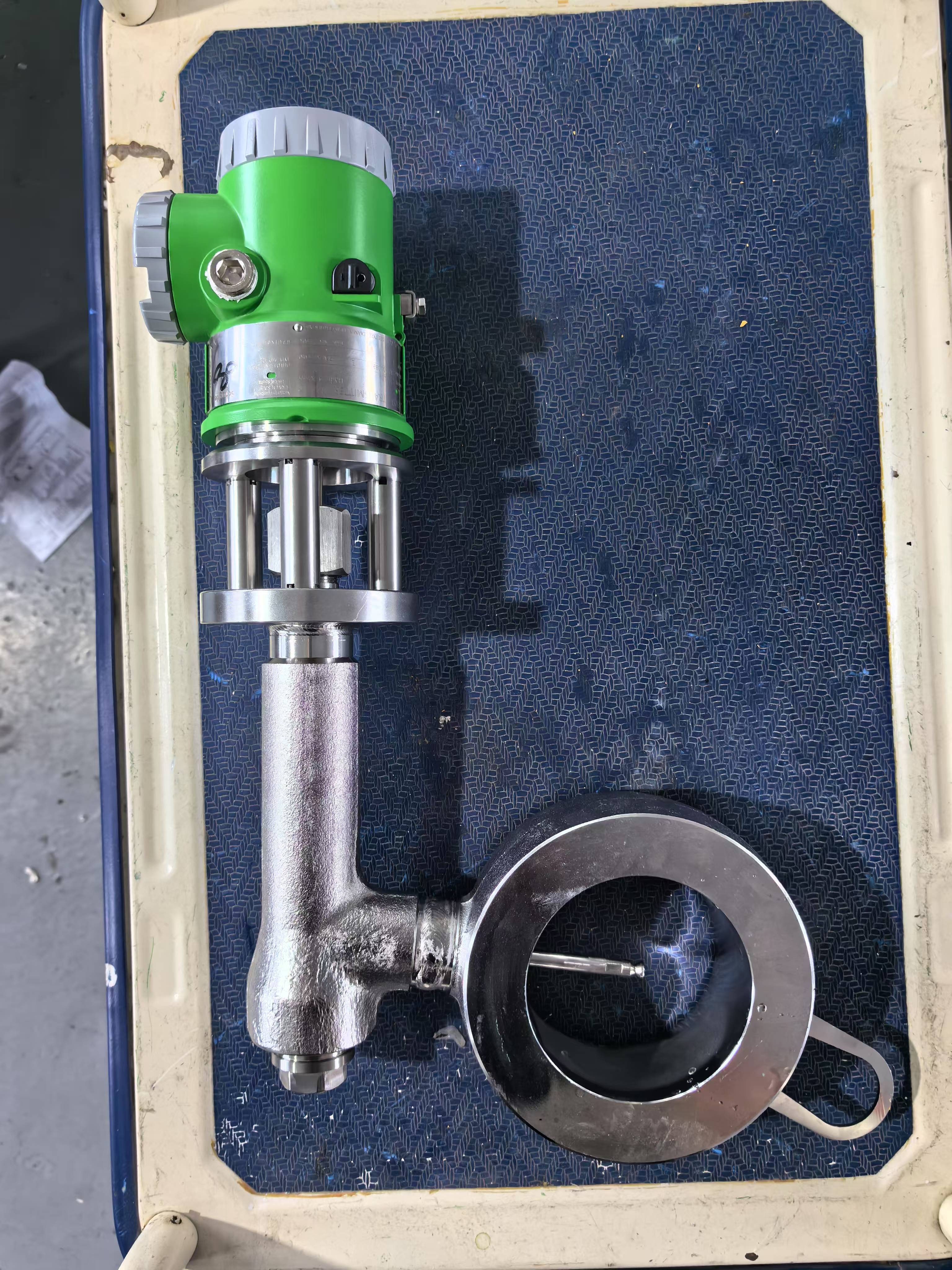

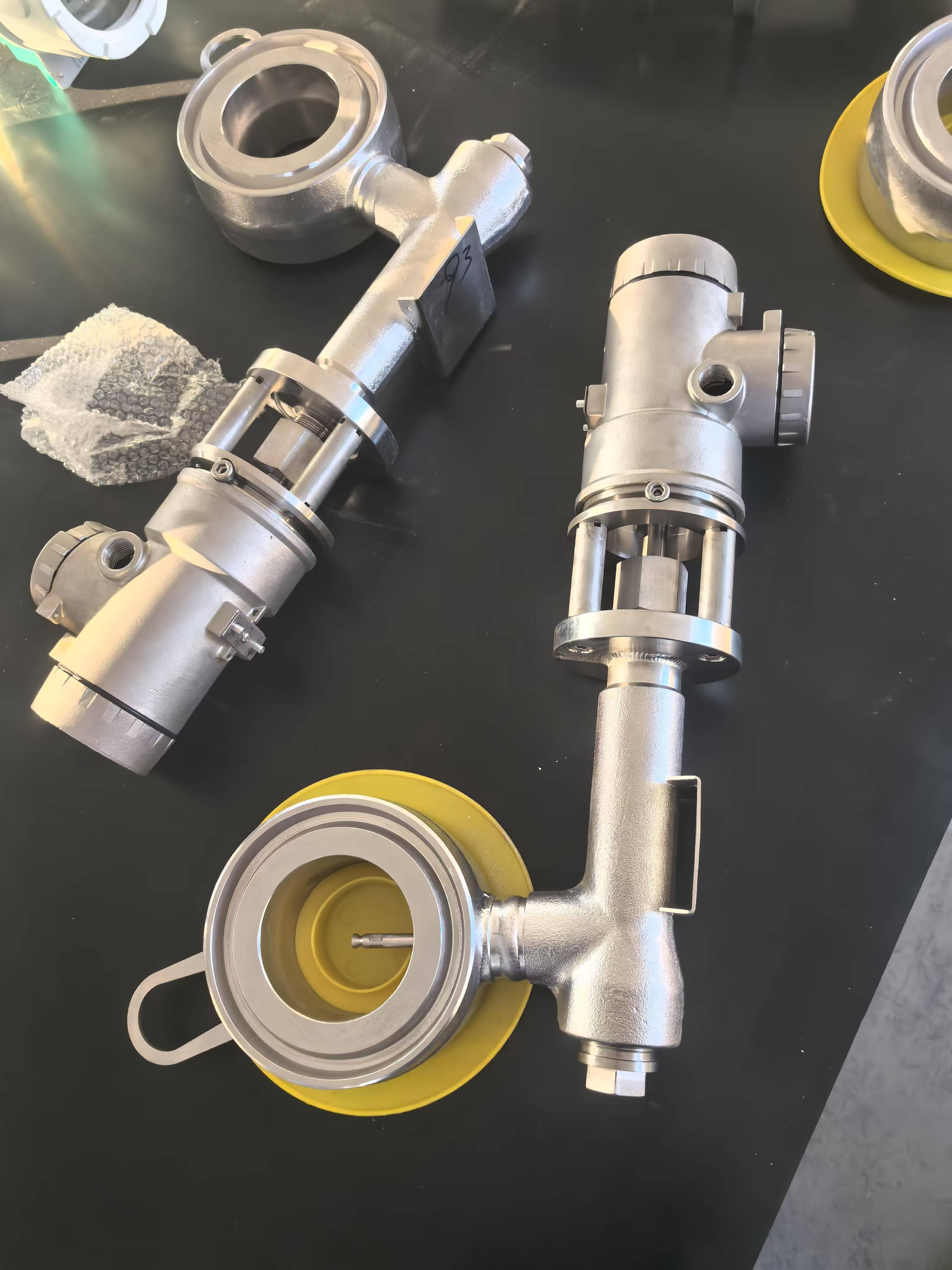

buoyancy level transmitter
316LS stainless housings with buttons control
RJF face for 2500# high pressure
forged wafer body 316LSS or monel or Inconel 600 or HC276
buoyancy level transmitter
high accurate of 0.5%
with stock in China
4-20mA HART
Technical features buoyancy level transmitter
·Power supply：12～42V DC ·
Output Signal：4～20mA/20～4mA ·
measurement range：300～3000mm(Beyond the range can be produced) ·
nominal pressure：≤42.0MPa ·
nominal diameter：DN40 or as customers’ request ·
ambient temperature：－40℃～+85℃ ·operating temperature：－196℃～+500℃ ·
accuracy rating：0.2class
·load resistance：(Power supply -12V)/0.02A ·
LED display：Five digits can be configured to %，mA or other physical unit ·
Medium boundary density difference：≥0.08g/cm3 ·Torque tube material：standard configuration Inconel600，or Monel、HasetlloyC-276 ·chamber material: carbon steel、304、316L or as customers’ request ·displacer material：304、316L or as customers’ request ·Flange standard：HG/T20592-2009、HG/T20615-2009 or as customers’ request ·cable entry：Two NPT1/2(internal thread) or as customers’ request ·explosion-proof：Intrinsically safe ExiaⅡCT4 ·
protection class：IP66
